User Interface (UI)

The user interface (UI) includes all visible elements users see and interact with while using AtroCore. This article contains the overview of all the main elements of user interface, which are the same for all entities in the system, as well as gives details on how to perform common tasks or operations in the system.

Please, make sure to contact your administrator in order to have access to a whole set of options described in this user guide.

The following elements make up the AtroCore user interface:

• Navigation Menu – to navigate through available entities.
• Taskbar – to help the user interact with the AtroCore system in a more efficient way; additional information or actions are displayed here.
• Search and Filtering Panel – to search and filter within one of its related entities.

Within the AtroCore system your information may be presented in various ways:

• List View – to view the lists of entity records.
• Detail View – to view the entity record details.
• Create View – to create a new entity record in the main window.
• Edit View – to edit the entity record.
• Quick Detail View (pop-up) – to view the record details in the pop-up window.
• Quick Edit View (pop-up) – to edit the record detail in the pop-up window.
• Quick Create View – to create a new entity record in the pop-up window.

Quick Create

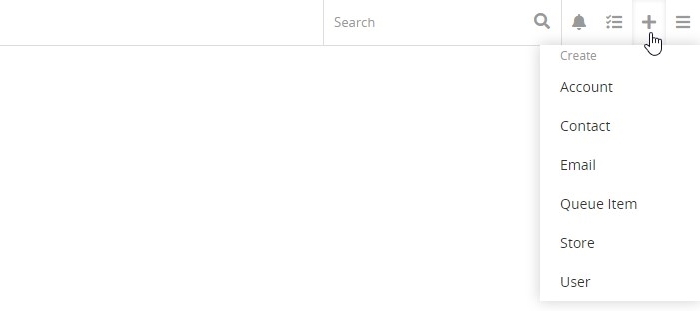

To create new records from anywhere, click the quick create button located in the upper right corner of the taskbar on any AtroCore page and choose the entity for the record to be created:

The quick create view page will be opened.

If there is no quick create button on your taskbar, please, contact your administrator.

Email Accounts

AtroCore works with IMAP mail accounts, with or without SSL protection. AtroCore is able to send emails via SMTP Server, also with or without SSL protection, which can be enabled or not.

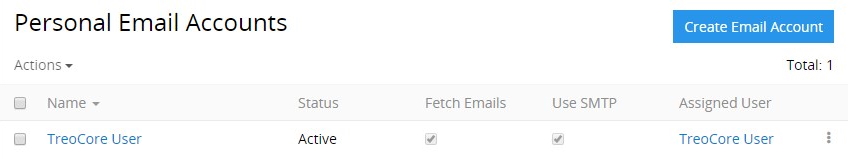

To open your personal email accounts, click the Email Accounts button on the user profile page; the list of the existing accounts, if any, will be displayed on the "Personal Email Accounts" page:

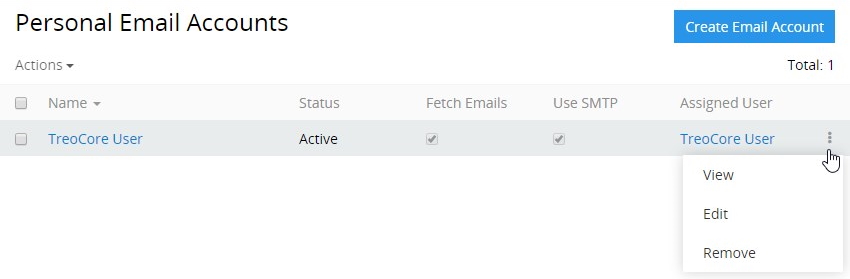

Each user can have one or more private email accounts that can be viewed, edited or removed right from the "Personal Email Accounts" list view page:

Creating

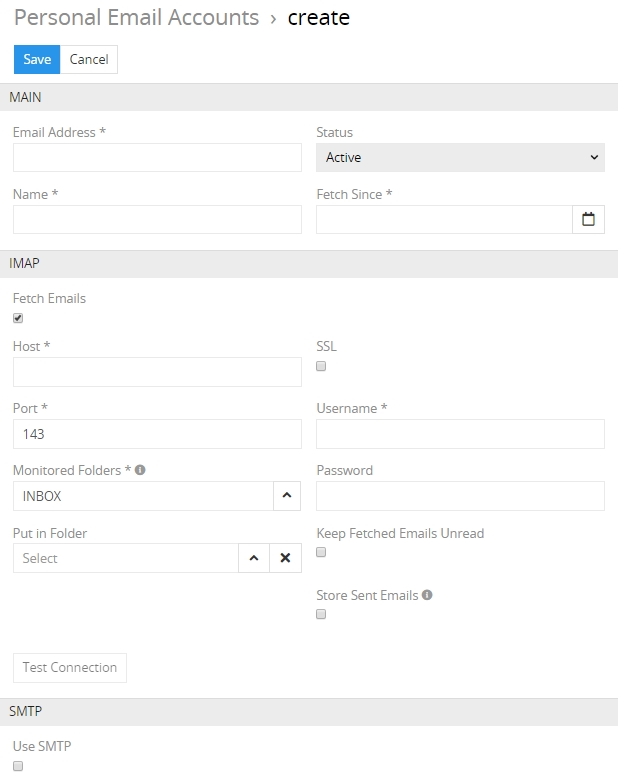

Click the Create Email Account button; the following creation page will open:

Here and fill in the required fields (marked with an asterisk) and configure the IMAP, SMTP options available in accordance with your email account server.

Last Viewed

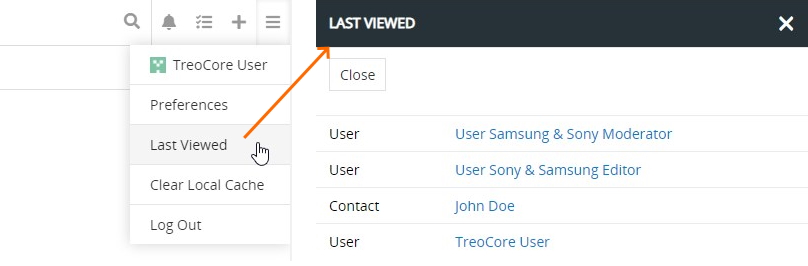

Select the Last Viewed option from the user drop-down menu to see the history of your visited pages within the AtroCore system:

Clear Local Cache

AtroCore is a single page application (SPA). To improve the page loading time, it actively uses cache for content as well as for the user interface.

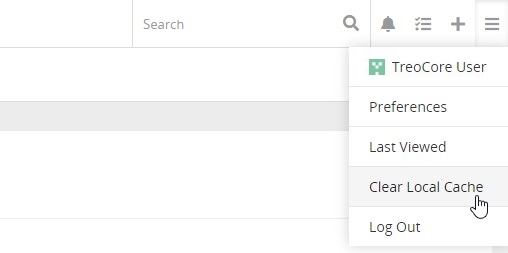

If you want to be sure in getting the latest information and application functions, please use the Clear Local Cache option from the user drop-down menu:
